Pioneer Floor-Mount Mini Split

These mini split inverter ductless air conditioning and heating systems have ultra-quiet operation and superior efficiency. Our floor-mount mini split systems are the perfect equipment for any cooling or heating application, using a single ductless indoor unit. All of our floor-mount AC options include an easy installation kit with a configurable length line set and various other accessories. Our floor-mount mini splits are made with high-quality materials and great attention to detail, which ensures that your unit will get the job done. Pioneer floor-mount mini splits are easy and convenient to install; our floor-mounted mini split heat pumps include an indoor unit, outdoor unit, wireless remote controls, manufacturer warranty, and more. Check out our selection of floor-mounted split system units today!

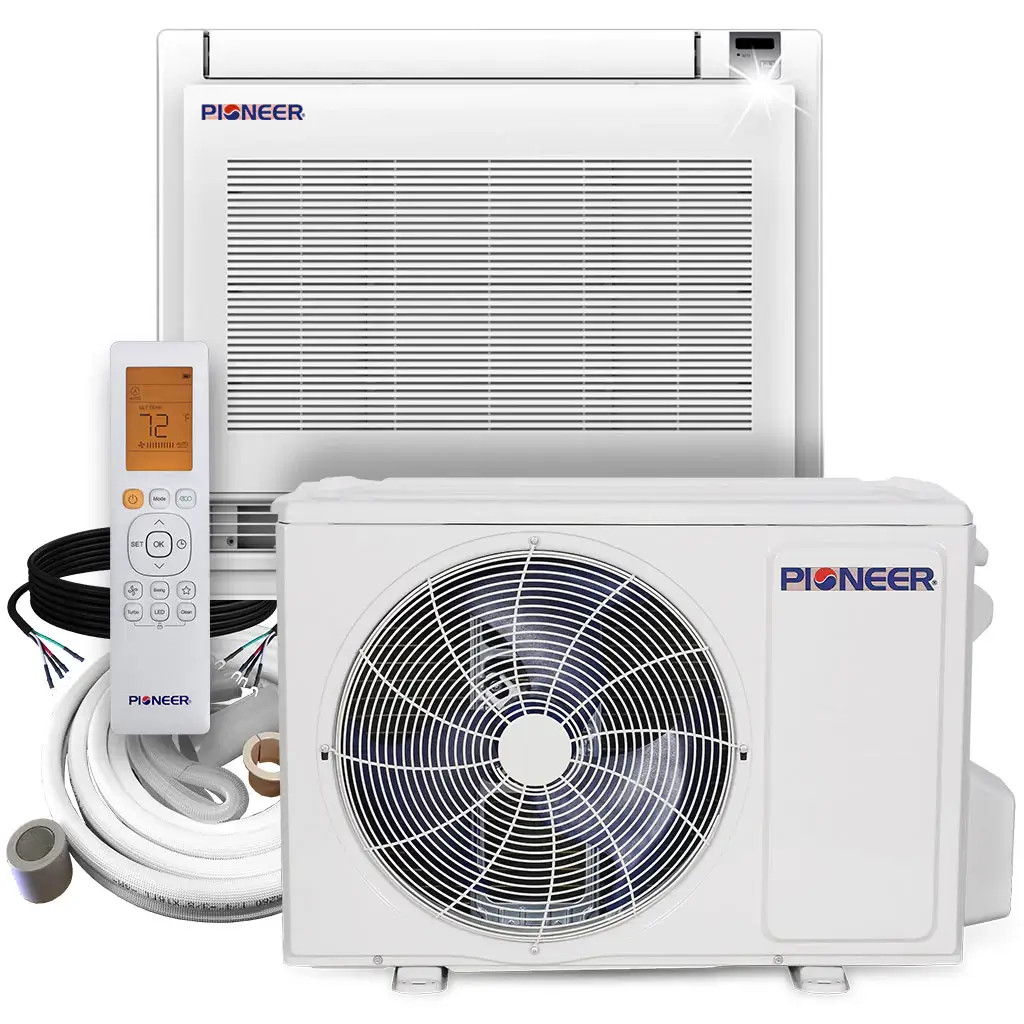

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Standard

• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using


• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h
• Cooling Capacity Range: 2,850~13,000 BTU/h
• Cooling SEER2: 22.7 BTU/W.hr
• Cooling EER2: 13.0 BTU/W.hr
• Heating Rated Capacity: 12,000 BTU/h
• Heating Capacity Range: 2,250~14,800 BTU/h
• Heating HSPF: 10.0 BTU/w
• Refrigerant Type: R410a
• Suitable Area: 200~450 Sq.F

Indoor Unit Data

• Model Number: FB012GMFILDFHE
• Air Flow (Hi/Med/Lo): 365 / 318 / 248 CFM
• Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 33.0 dB(A)
• Net Dimensions (WDH): 27-1/2 x 8-1/4 x 23-5/8 Inches
• Carton Dimensions (WDH): 30-3/4 x 11-3/4 x 27 Inches
• Net / Gross Weight: 32.6 / 41 Lbs

Outdoor Unit Data

• Model Number: YN012GMFI22RPE
• Sound Level: 53.5 dB(A)
• Breaker Needed: 15A (double-pole)
• Expansion Device Type: EXV
• Net Dimensions (WDH): 30-1/8 x 11-7/8 x 21-7/8 Inches
• Carton Dimensions (WDH): 34-7/8 x 13-1/4 x 24 Inches
• Net / Gross Weight: 63.7 / 69 Lbs
