Summary

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 17,000 BTU/H with 20.0 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 20,000 BTU/H with 10.6 HSPF2 / 3.12 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified

Concealed Mini Splits

Pioneer® Ducted concealed mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split system is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings. Our hidden ducted mini split system offerings include six capacities—such as our ceiling concealed mini split and mini split slim duct systems—to cover distinctive zones of every size and complexity. Check out our selection of concealed duct mini split systems today, and start enjoying hidden duct mini split AC and heat!

More details about Pioneer® RYB Series

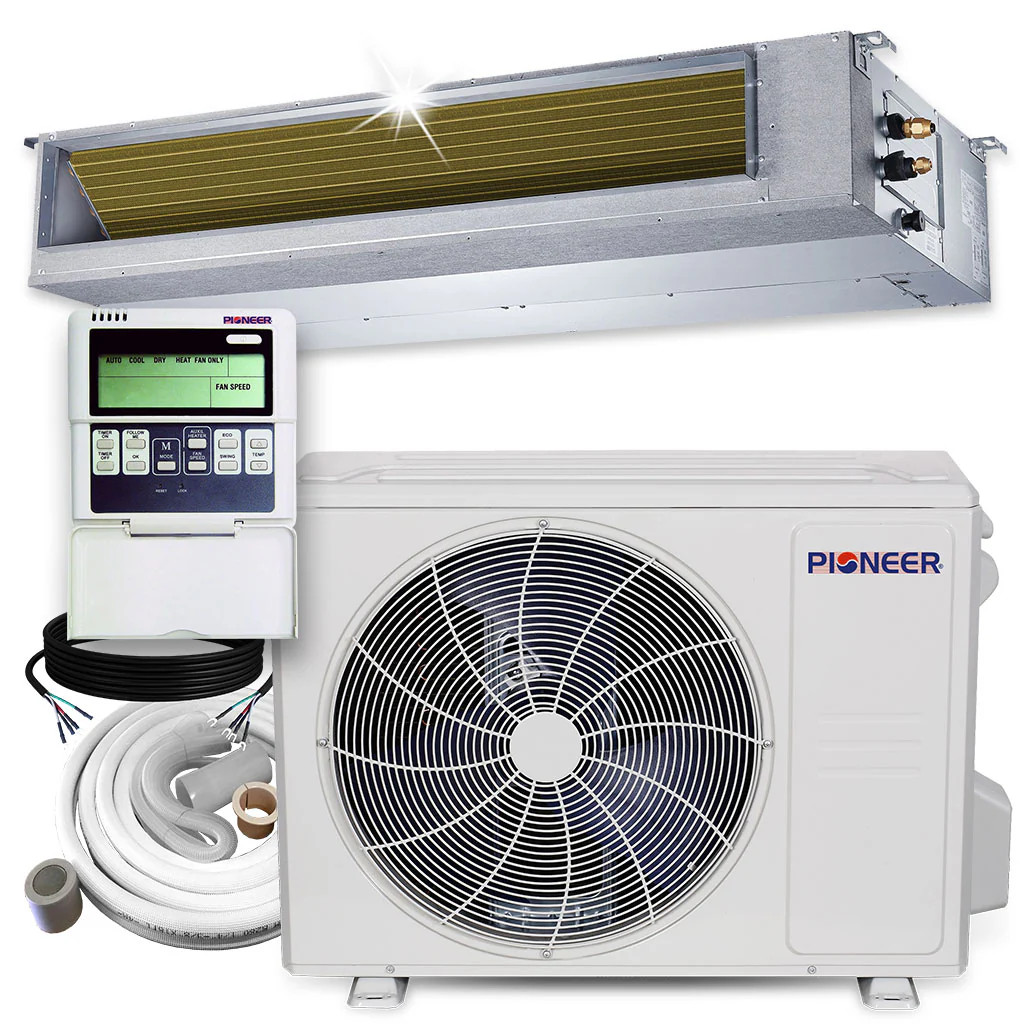

What's Included

• Indoor Unit
• Outdoor Unit
• Wire Remote Control

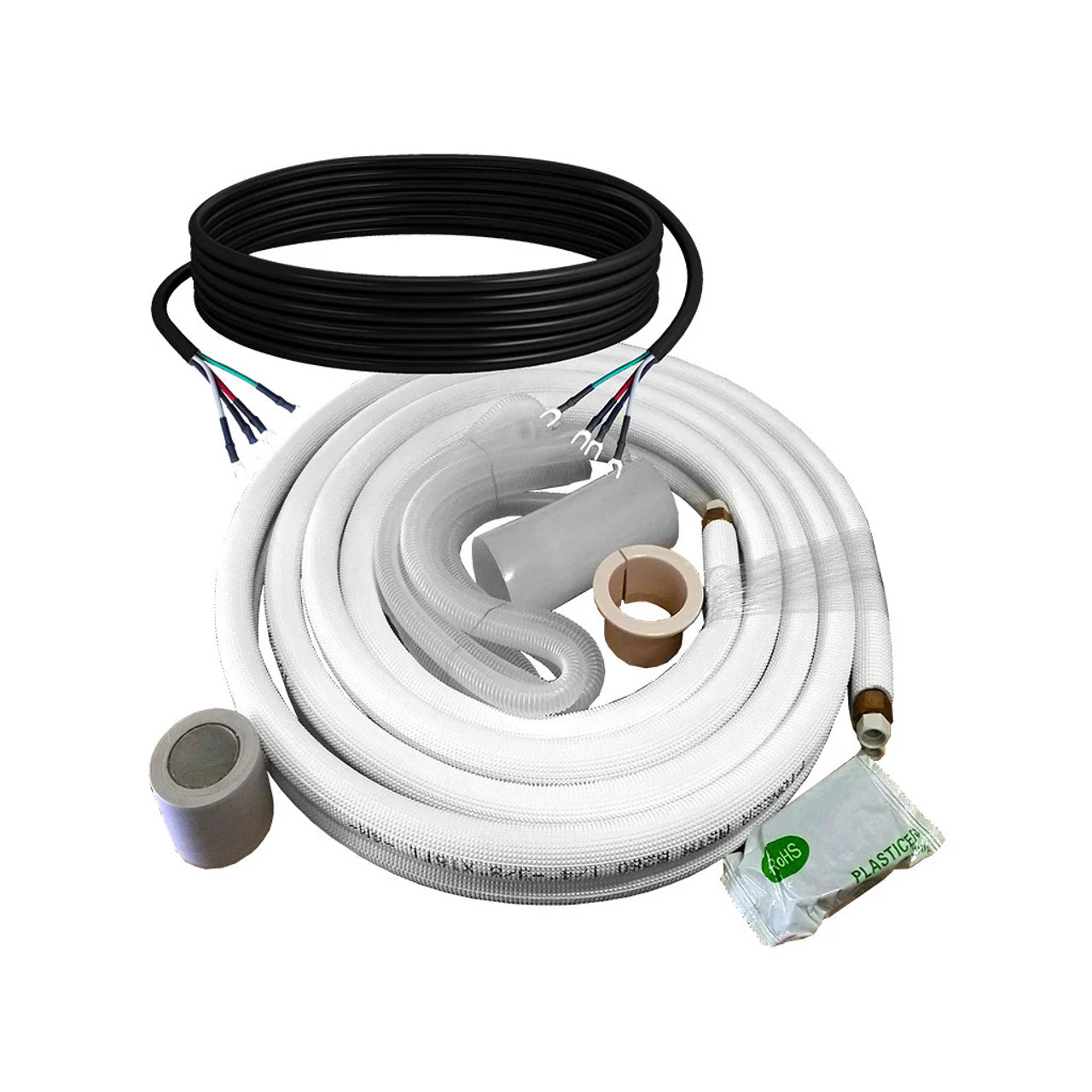

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 17,000 BTU/h
• Cooling Capacity Range: 5,800~18,000 BTU/h
• Cooling SEER2: 20.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 20,000 BTU/h
• Heating Capacity Range: 5,000~20,000 BTU/h
• Heating HSPF2 (Region IV/V): 10.6 / 8.2 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.12 / 2.4 W/W
• Refrigerant Type: R410a
• Suitable Area: 450~650 Sq.F

Indoor Unit Data

• Part Number: RB018GMFILDFHD
• Air Flow (Hi/Med/Lo): 530 / 450 / 370 CFM
• External Static Pressure: 0 ~ 0.40 Inch WC
• Sound Level (Hi/Med/Lo): 41.5 / 38.5 / 36 dB(A)
• Net Dimensions (WDH): 34"-5/8 x 26"-1/2 x 8"-1/2
• Carton Dimensions (WDH): 42"-1/8 x 28"-1/2 x 10"-5/8
• Net / Gross Weight: 53 / 65 Lbs

Outdoor Unit Data

• Part Number: YN018GMFI22RPE
• Sound Level: 60 dB(A)
• Net Dimensions (WDH): 33"-1/4 x 14"-3/8 x 27"-5/8
• Carton Dimensions (WDH): 38" x 15"-1/2 x 29"-3/4
• Net / Gross Weight: 95 / 102.5 Lbs
• Breaker Needed: 20A (double-pole)
