Wall-Mounted Mini Split

Quantum Series Inverter+ (20 SEER) and Inverter++ (22 SEER)

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

More details about Pioneer® WYS Series

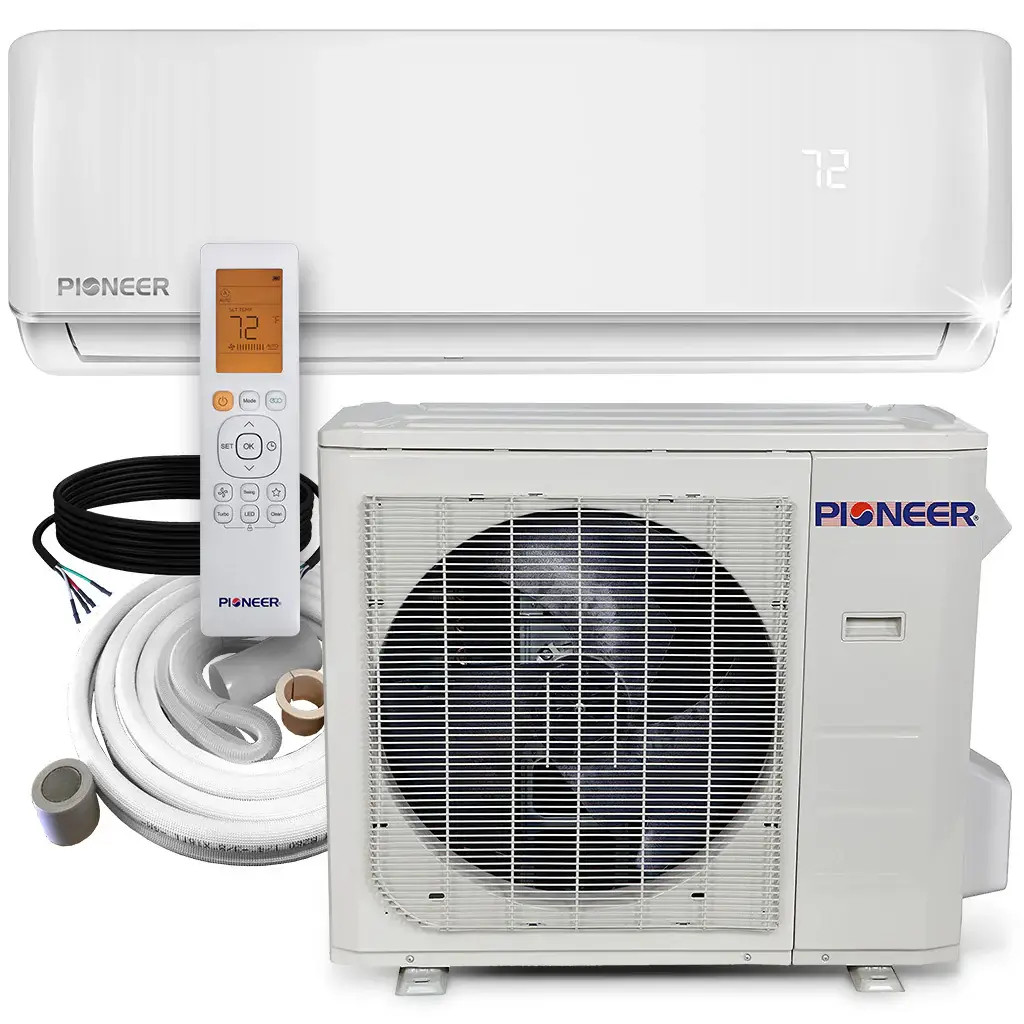

What's Included

• Ductless Wall-Type Indoor Air Handler Unit
• Outdoor Heat Pump Condensing Unit
• Wireless Handheld Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Standard

• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46° F Heating


• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using


• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 30,000 BTU/h
• Cooling Capacity Range: 7,200~31,600 BTU/h
• Cooling SEER2: 18.6 BTU/W.h
• Cooling EER2: 10.5 BTU/W.h
• Heating Rated Capacity: 30,000 BTU/h
• Heating Capacity Range: 10,600~32,500 BTU/h
• Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 2.71 / 1.84 W/W
• Refrigerant Type: R410A/97
• Suitable Area: 800~1,100 Sq.F

Indoor Unit Data

• Model Number: WS030GMFI20HLD
• Air Flow (Hi/Med/Lo): 974 / 618 / 471 CFM
• Sound Level (Hi/Lo): 51.5 / 44 dB(A)
• Net Dimensions (WDH): 49.5 x 11.2 x 14.3 Inches
• Carton Dimensions (WDH): 52.7 x 17.7 x 15.0 Inches
• Net / Gross Weight: 37.5 / 50.5 lbs

Outdoor Unit Data

• Model Number: YN030GMFI20RPD
• Sound Level: 60.0 dB(A)
• Breaker Needed: 30A (double-pole)
• Net Dimensions (WDH): 37.3 x 16.5 x 31.8 Inches
• Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
• Net / Gross Weight: 141.7 / 151.9 lbs
