Enhanced Modern Design

How do you improve upon an air handler that’s already silent? You make the appearance of it silent as well, with a premium encasing and elegant textures. A matte-frost finish ensures less fingerprints and time spent wiping. The curved edges give the system a softer look, and the LED display has been modified to show the set temperature in a more subdued fashion.

Wi-Fi Controlled via Free App

Unlock the full potential of your new Pioneer system by activating the USB module included with your purchase. In 2 minutes you’ll be up and running, and ready to set custom schedules or fully control one or many units from the same app, easily and reliably, from across the world. Now you can pre-condition your home before you arrive, turn off the unit remotely or check that your pets are relaxing in comfort. You can also integrate your new mini split with a Smart Assistant, such as Alexa, Google Assistant, and Apple Siri.

Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)

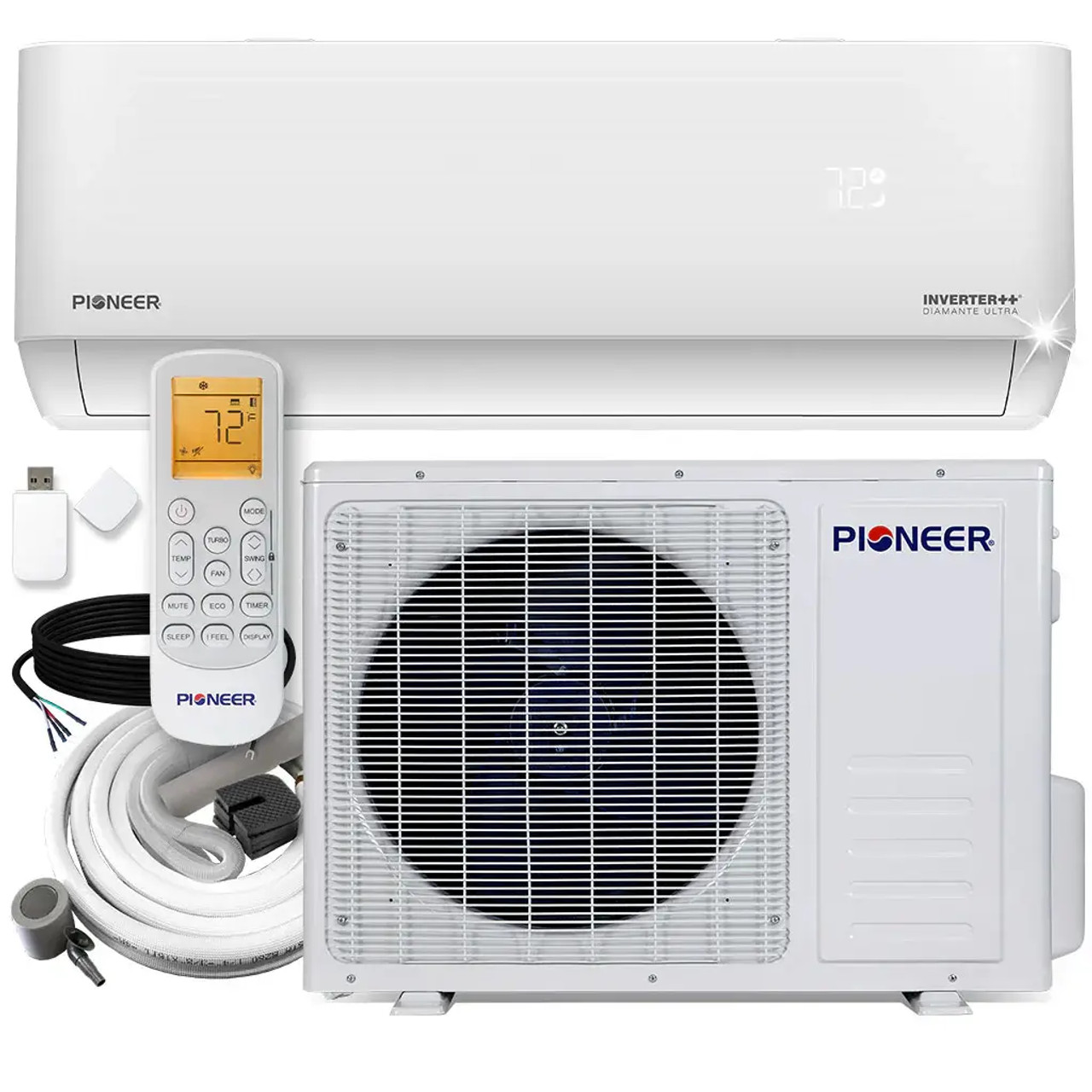

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Performance Data

• Power Supply: 115V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Cooling): 920W
• Cooling SEER2: 22 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Heating): 910W
• Heating HSPF2: 9.0 BTU/W.h
• Heating C.O.P.: 3.5 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 200~450 Sq.Ft

Indoor Unit Data

• Part Number: WT012ALFI22HLD
• Air Flow (Hi/Med/Lo): 471 / 382 / 294 CFM
• Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
• Net Dimensions (WDH): 36-1/4 x 7-5/8 x 12 Inches
• Carton Dimensions (WDH): 39 x 10-3/8 x 15 Inches
• Net / Gross Weight: 23.1 / 26.5 Lbs

Outdoor Unit Data

• Part Number: YN012ALFI22RPD
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2  x 14-1/8 x 24 Inches
• Net / Gross Weight: 60.4 / 65.5 lbs
• Electrical Circuit Size: 20A (single-pole)
