Pioneer

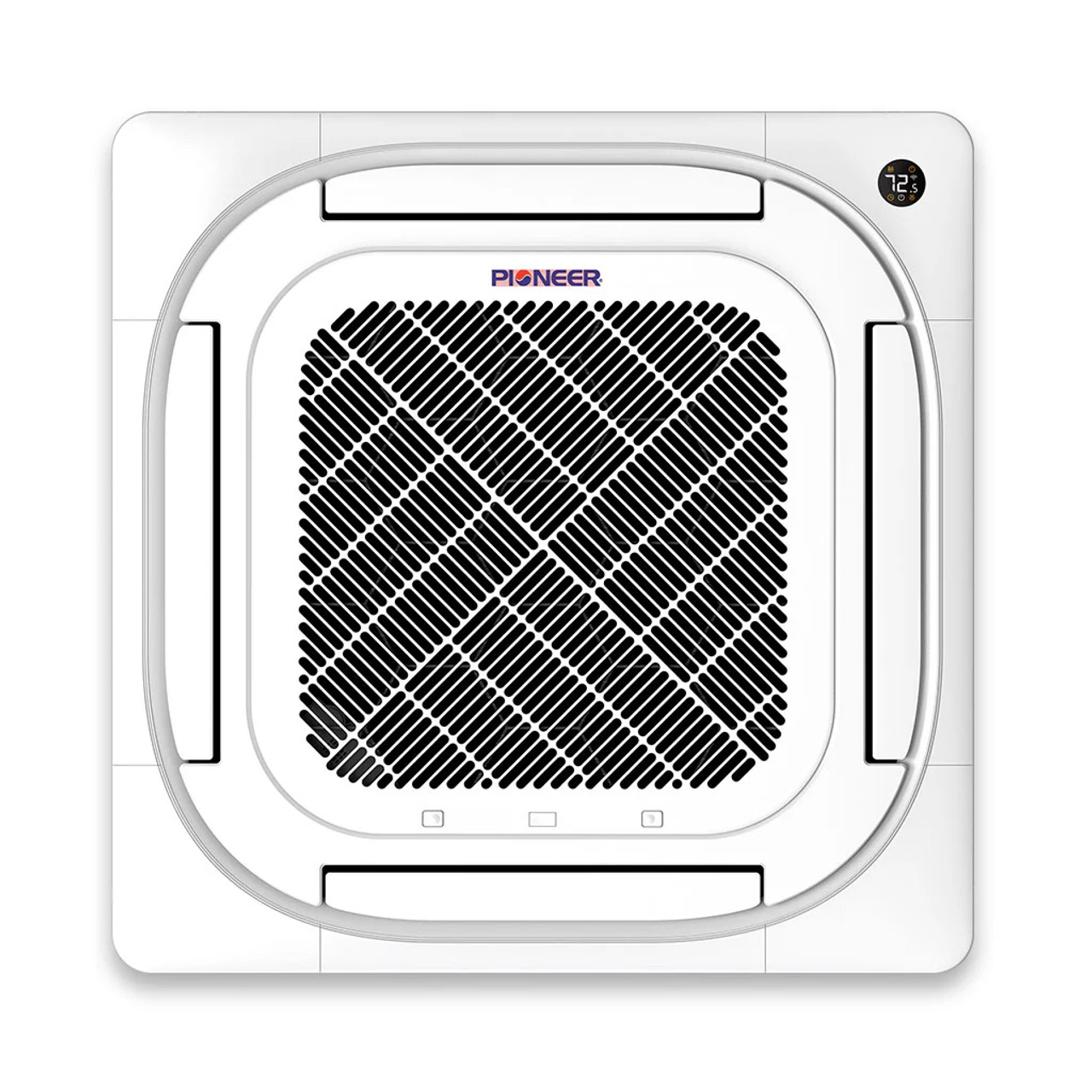

Pioneer® Multi Zone 24,000 BTU Quantum Series Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
- UPC:
- 7425211261218
- Availability:
- Ships in 3 days
- Shipping:
- Free Shipping
Summary
Multi Zone Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 24,000 BTU/Hr. (2 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit. Matches with Quint (5) zone Multi Split Outdoor Units Only.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
- Quad Zone: YN040GMFI22M4E
- Quint Zone: YN050GMFI22M5E
Notes
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

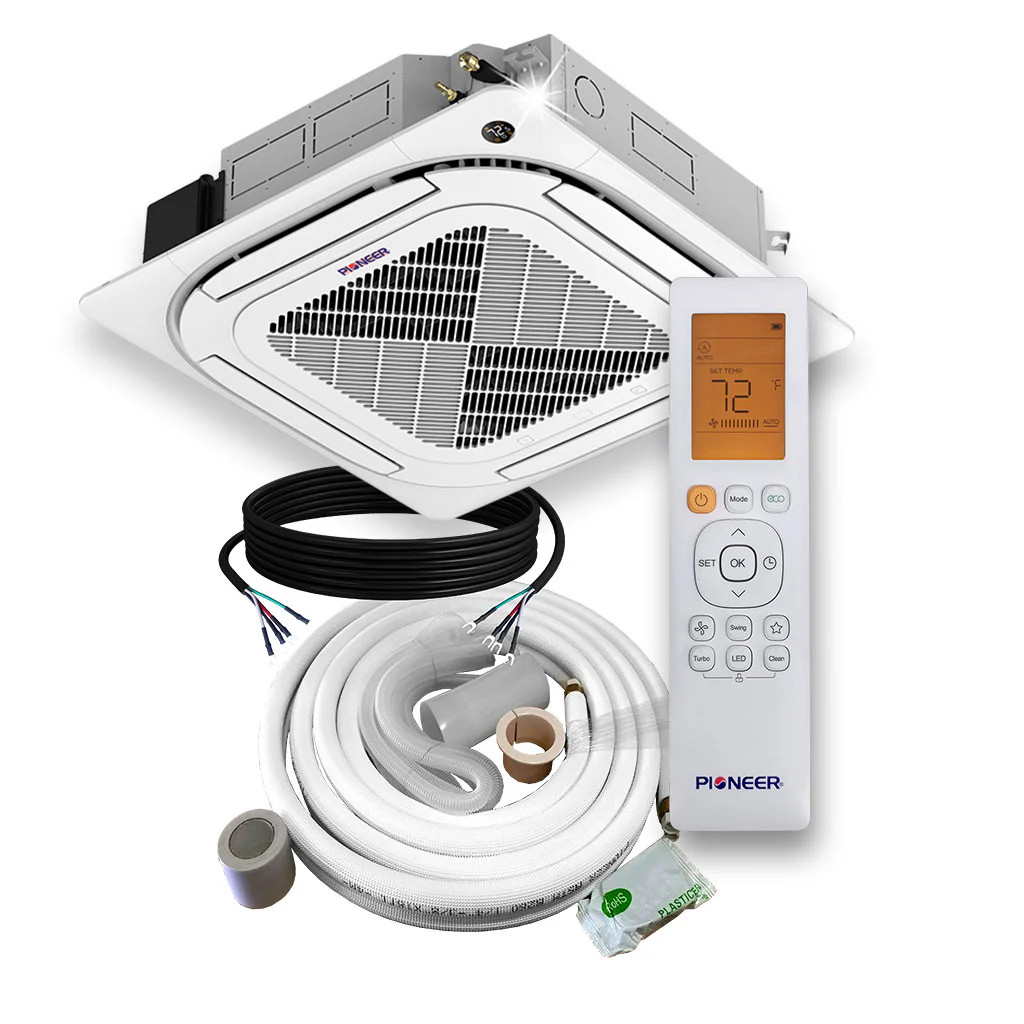

What's Included
- Indoor Unit
- Wireless Remote Control

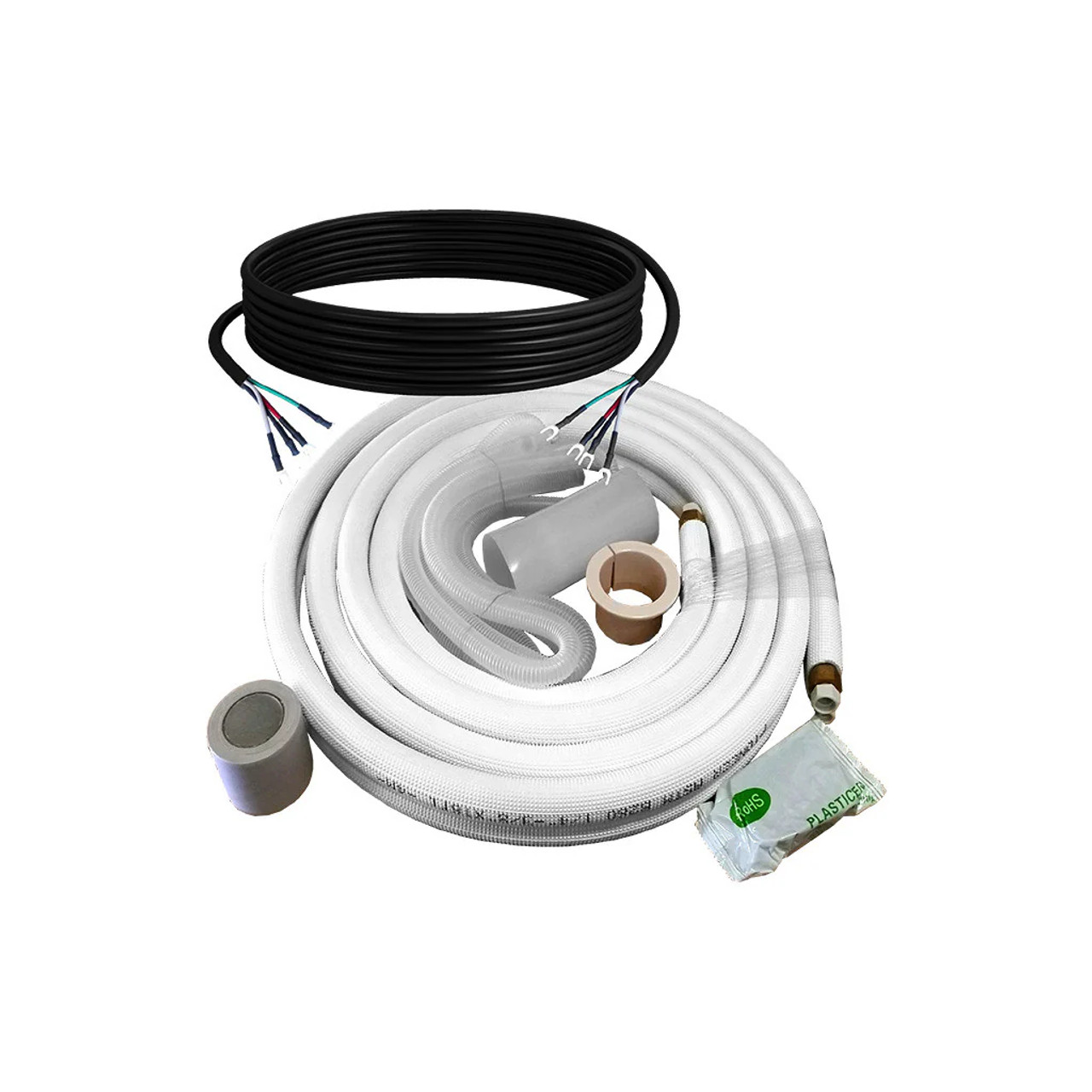

- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 24,000 BTU/h
- Cooling SEER: 20.0
- Heating Capacity: 24,400 BTU/h
- Heating HSPF: 10.5
- Suitable Area: 650~900 Sq.F
- Air Flow (Hi/Med/Lo): 700 / 630 / 573 CFM
- Sound Level (Hi/Med/Lo): 51 / 47 / 43 dB(A)
- Net Dimensions (WDH): 33" x 33" x 8"
- Carton Dimensions (WDH): 35"-1/2 x 35"-1/2 x 8"-1/2
- Net / Gross Weight: 46.5 / 54 Lbs
- Panel Net Dimensions (WDH): 37"-1/2 x 37"-1/2 x 2"
- Panel Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2
- Panel Net / Gross Weight: 11 / 17.5 Lbs
